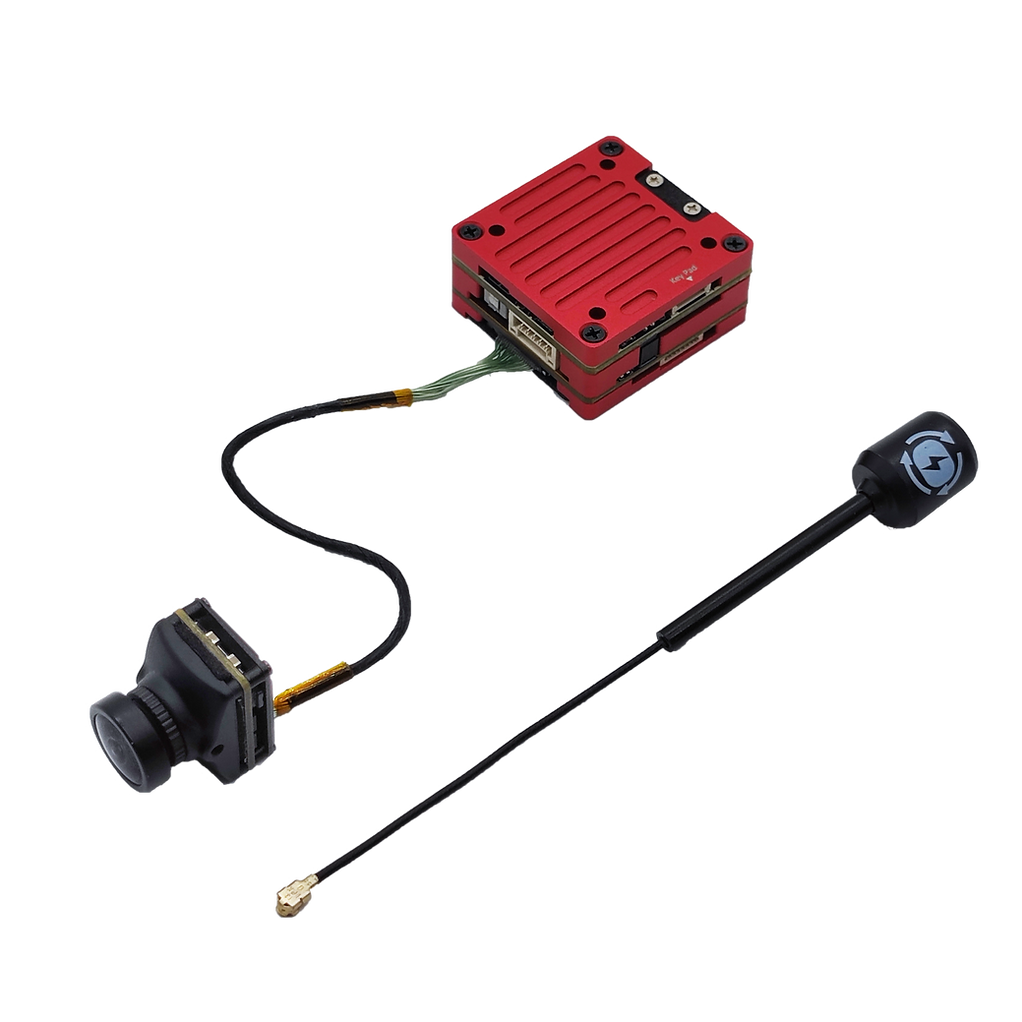

000126 - HDZero Freestyle V2 Kit

The HDZero Freestyle V2 VTX is our 2nd generation 5.8GHz digital video transmitter which can be fitted into most 3-5-inch HD drones. All sockets are well protected by the CNC case that provides durability, RF shielding and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The antenna and MIPI cable are secured by the included retention bar and screws.

The VTX supports 720p60 ,1080p30, 540p60 and 540p90 video modes.

The VTX is capable of maximum 1W RF output at R1 channel if unlocked with license or approval from the local authorities.

Specifications


Manufacturer
Divimath, Inc
Model
HDZero Freestyle V2 VTX
Weight
22.3 g
Dimensions
29x30x14mm
Operating Frequency
5.725-5.850GHz
Transmitter Power
25mW,200mW
Mounting Pattern
20x20mm M2 holes
Antenna Interface
Secured U.FL
Video In
Secured MIPI
SmartAudio
Yes
MSP Canvas Mode
Yes
Input Power
7-25V
Operating Temperature
32?F-104 ?F (0?-40?C)
Power Consumption
6-15W


Includes

1x Freestyle V2 VTX
1x Nano 90 Camera (with 19 x 19 Mount)
1x HDZero RHCP antenna
1x 120mm Mipi Cable
1x Power Cable
1x SA Cable
1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
1x Double Sided Tape (29 x 30 x 1mm )
